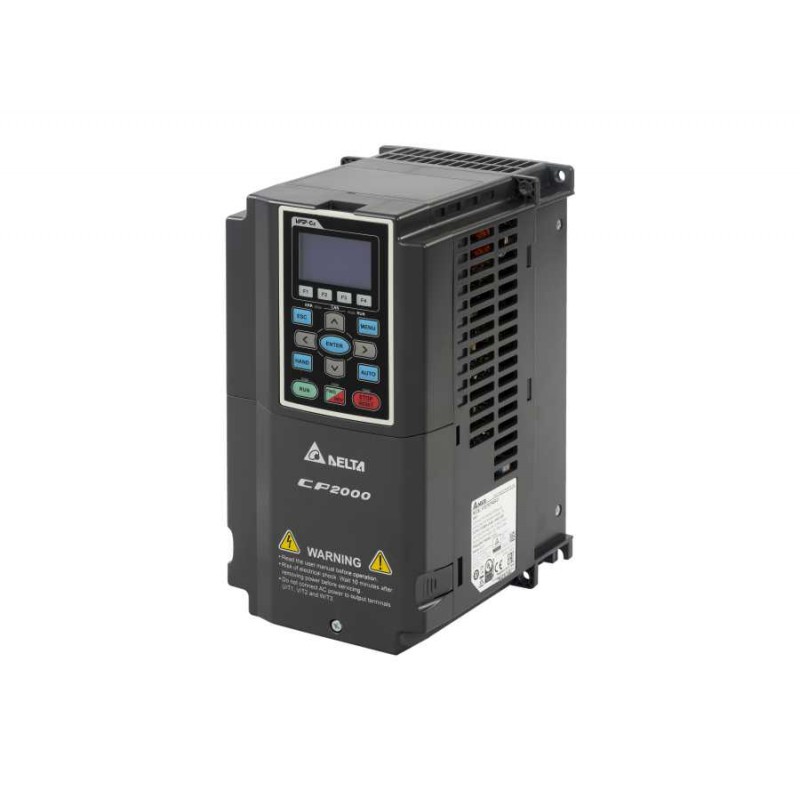

Delta Industrial Automation Introduces The CP2000 Series AC Motor Drive For Energy-saving HVAC Systems And For Pump And Fan Applications. The CP2000 Series Is Equipped With Special HVAC Parameters And PID Control Functions For Efficient Operation, As Well As Multi-segment V/F Control Curve And Soft Start Functions To Assist Frequent Torque Change And Constant Output Applications With Energy-saving Performance.

? With A Built-in 10K Steps Delta PLC Allows Users To Execute Distributional Control And Independent Control When Connecting To A Network System. Delta CP2000 Series Drives Provide You The Intelligent Control Possibility Beyond Your Imagination.

? The Calendar Function Allows Users To Program The PLC Procedure, The ON/OFF In Chronological Order, The Daylight Saving Time And Etc.

? A Wide Range Of Models (0.75~630KW) To Fulfill The Demands Of Different Industries.

? The Modularized Design Eases Maintenance And Expansion.

? High-speed Communication Interfaces With MODBUS Protocol And BACnet Protocol Built-in.

? Diverse Communication Methods To Satisfy Clients@@ Needs On Multi-controls. So The Following Options Are Available For You: The Profibus-DP, The DeviceNet, The MODBUS TCP, The Ethernet-IP, And The CANopen Cards.

? Long-life Design And Self-diagnosis For Key Components.

? Special PCB Coating Design (Printed Circuit Board) For Enhancing Environmental Tolerance.

? Complied With Global Safety Standards: CE, UL, And CUL

? Standard LCD Model (IP20/NEMA1) With Built-in PLC To Support Up To 10K Steps

? Heat-sink Design. Able To Operate At 50°C Ambient Temperature And To Adjust Automatically Rated Output Value To Make The AC Drive Work Continuously.

? Run Fire Mode While Emergency To Have Uninterrupted Smoke Releasing And Pressure Adding

? Multi Pumps Control At Fixed Amount, Fixed Time Circulating Control. Able To Control 8 Pumps At The Same Time. (Such As Image01 And Image02, Optional Multi-control Relay Card Is Required.)

Power Range

230V/3-Phase : 1HP ~ 125HP
460V/3-Phase : 1HP ~ 850HP
