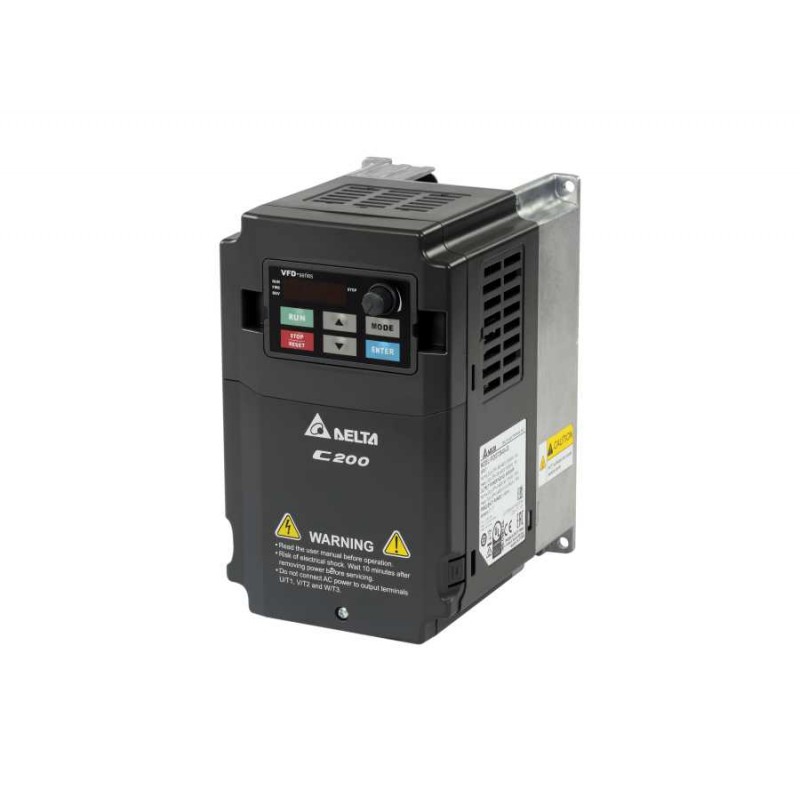

Delta's VFD-C200 Series Is An Intelligent Vector Control Micro Drive Used For Open Loop & Close Loop Speed Control As Well As Torque Control (With Two High Speed Input Capacity 33 Khz) For Both IM & PM Motors, Also Built-in Various Essential Functions, Including PLC Capacity 5k Steps For Simple Programming Needs, It Has Strengthened Thermal And Anti Dust Design So It Is Suitable For Harsh Environment Applications.

? Built-in PLC Program With 5,000 Steps Capacity

? Built-in Brake Chopper

? MODBUS RS-485 And CANopen (Slave)

? The High-brightness LED Keypad Shares The Same Extension Cable Of The VFD-E/M/B Series To Maximize Operation Distance

? Supports Open-loop Control Of Permanent Motors (PM Sensorless)

? Two High-speed Pulse Input Terminals MI7 And MI8 Built-in With Maximum Speed Up To 33kHz

? Two High-speed Pulse Output Terminals DFM1 And DFM2 Built-in With Maximum Speed Up To 33kHz

? New PCB Coating For Circuit (IEC 60721-3-3 Class 3C2) And Thermal Design Suitable For Harsh Environment Applications

? C200 Series Frame A Supports Wall-mounted Installation

Power Range

230V/1-Phase : 0.5HP ~ 3HP
460V/3-Phase : 1HP ~ 10HP
