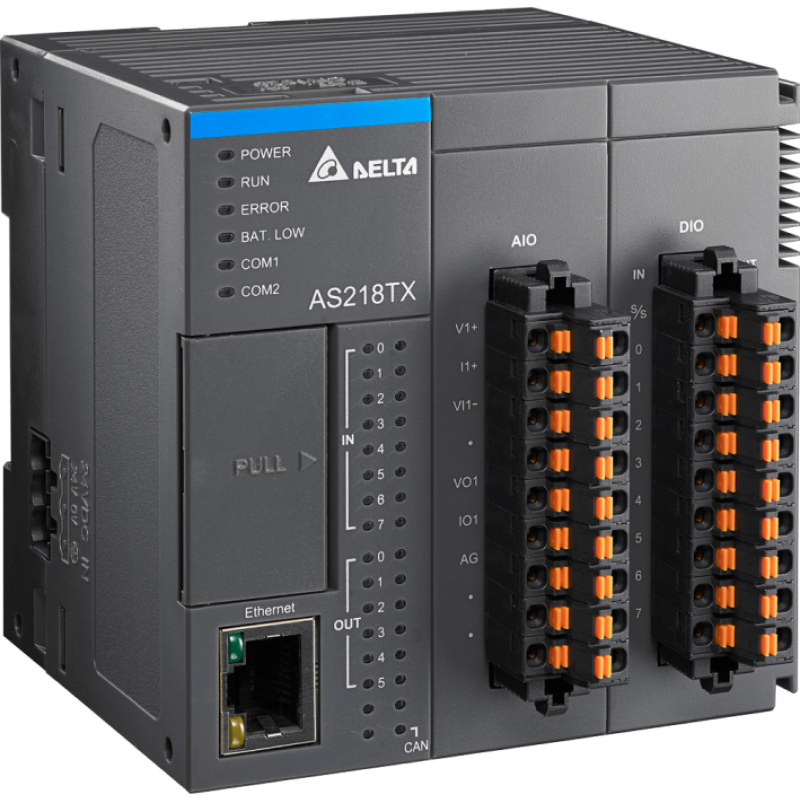

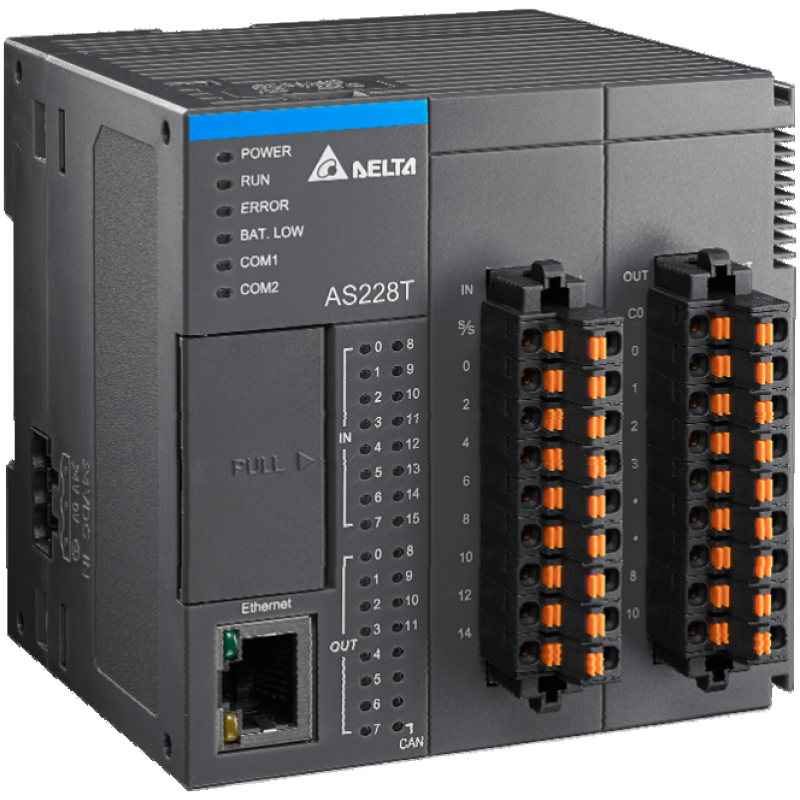

The Delta Compact Modular Mid-range PLC AS Series Is A High Performance Multi-purpose Controller Designed For All Kinds Of Automated Equipment. It Features Delta's Self-developed 32-bit SoC CPUs For Enhanced Execution Speed (40 K Steps/ms) And Supports Up To 32 Extension Modules Or Up To 1,024 Inputs/outputs. The AS Series Provides Accurate Positioning Control For Up To 8 Axes Via The CANopen Motion Network And Max. 6 Axes Via Pulse Control (200 KHz). It Is Widely Used In Diverse Automated Equipment Such As Electronics Manufacturing, Labeling, Food Packaging, And Textile Machines.

? New 32-bit SoC (System On Chip) CPU To Enhance Execution Speed(40 K Steps/ms)

? Positioning Control Function For Up To 8-axis Motion Control Via CANopen / 6-axis 200 KHz Pulse Control

? Robust Non-backplane Design And Patented DIN Rail Clips For Vertical Module Installation And Replacement

?ISPSoft Editing Software For Programming, Hardware Configuration, Network Communication, System Diagnostics, And Positioning Planning

? New 32-bit SoC (System On Chip) CPU

? Max. I/O: 1,024

? Program Capacity: AS300 Series 128k Steps, AS200 Series 64k Steps

? Data Registers: 60k Words

? Extension Modules: Max. 32 (analog Modules: Max.16 / Communication Modules: Max. 4)

? Execution Speed: Up To 40 K Steps/ms

• Basic Instruction (LD): 25 Ns
• Application Instruction (MOV): 0.15 μs

? The Abundant Selection Of DIO Modules, AIO Modules, Temperature Modules, Load Cell Modules, And Function Cards.
